Panorama buses have different types of external and internal isolator switches, and their locations also vary.

Use the reference below to familiarise yourself with the possible types and locations. The table at the end of this document helps you locate these switches in your assigned vehicle using the door colours in the first image.

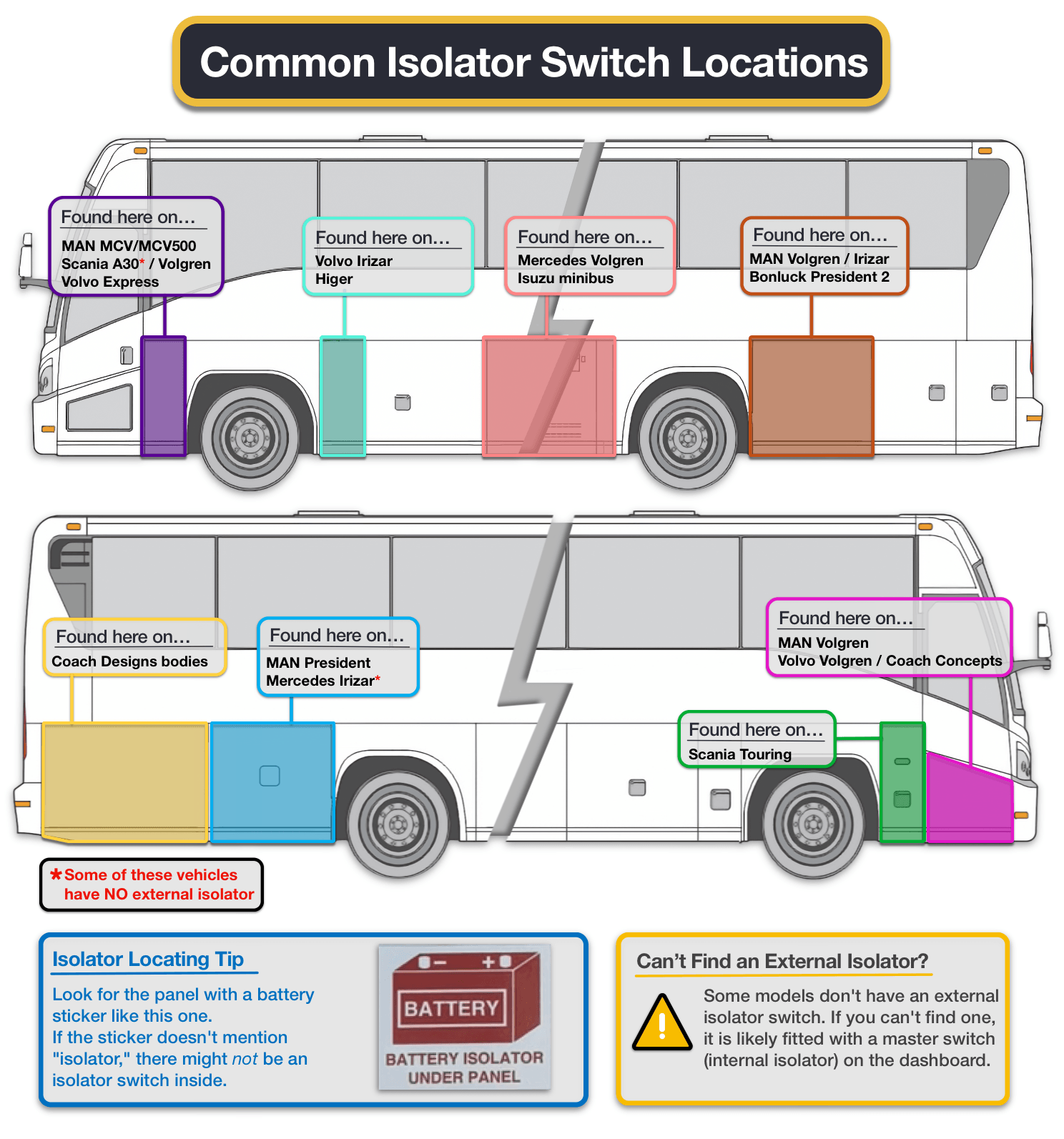

External Isolator Switch Locations

External isolators are usually at the battery, which is located behind one of the body panel doors. The below image shows the eight panel doors.

---

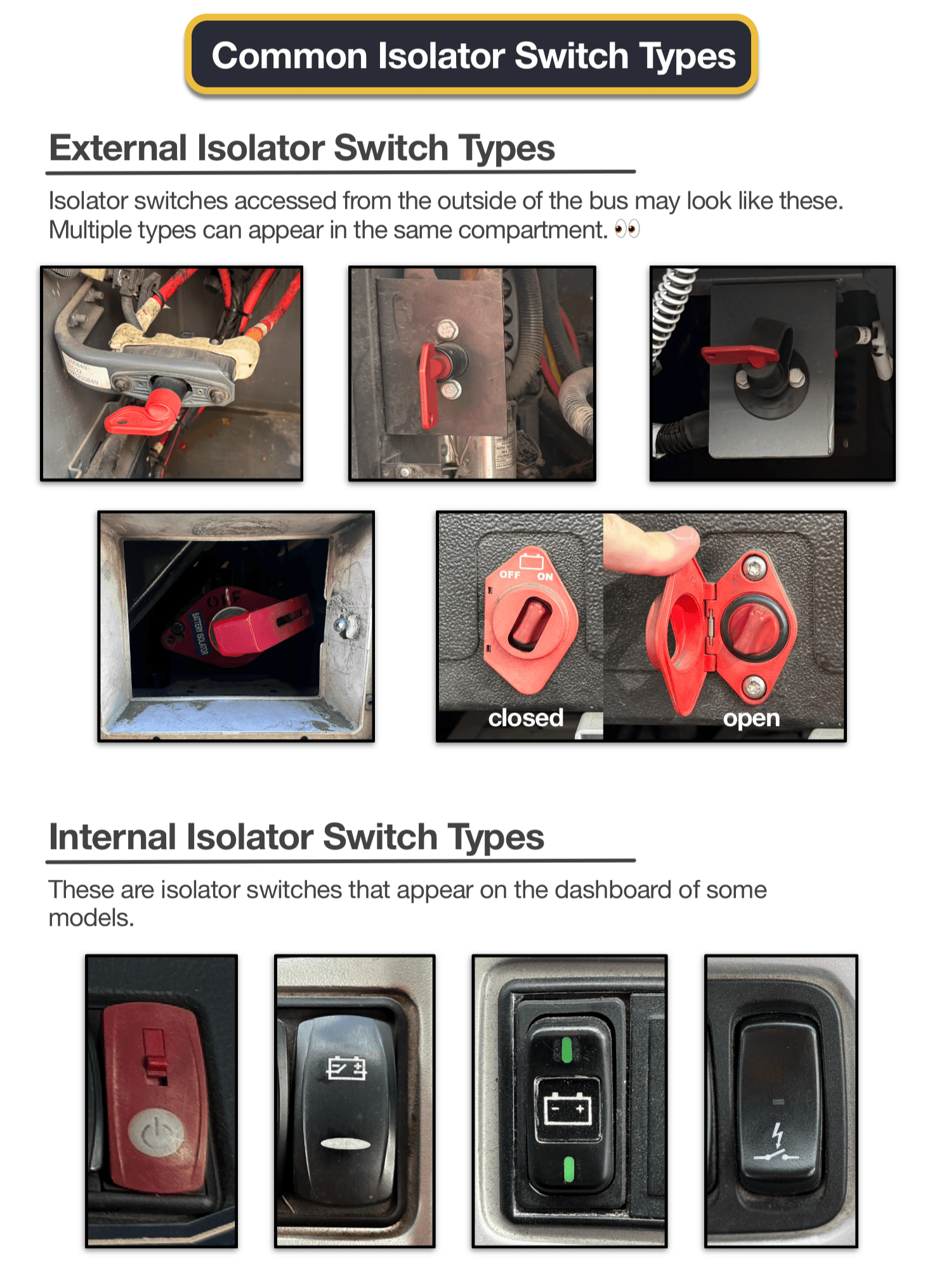

Isolator Switch Types

Isolator Locations in the Panorama Fleet

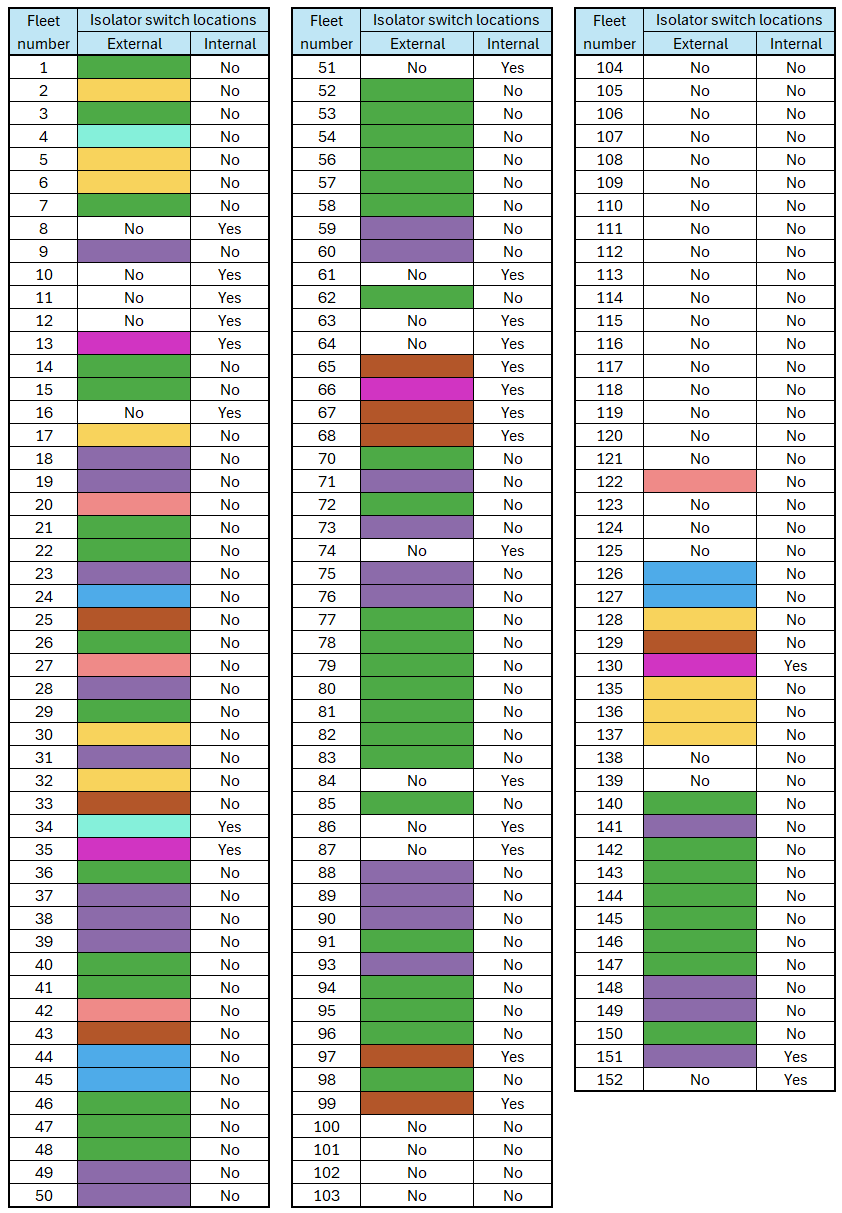

Find your vehicle’s fleet number in the table below. Next to it, you can see the location of the external isolator (using the colours in the bus images above) and whether there is an internal isolator (master switch) on the dashboard.
